MAGGUARD-HII

Category
Ferromagnetic Material Detector for MRI Safety
Technology
Ultra-sensitive magnetic sensor system
MAGGUARD-HⅡ, the ferromagnetic material detector for MRI Safety, protects patients, hospital staff and MRI apparatus from MRI accidents by detecting ferromagnetic material. MAGGUARD is equipped with our in-house developed ultra-sensitive sensors to monitor and detect as small as paper clip sized ferromagnetic material and give alert before anyone goes into an MRI room.

For your MRI Safety solution

  • For MRI scan of an unconscious patient screening

  • When unable to perform a medical interview, or patient not aware of the medical history (e.g.; pacemaker insertion)

  • For patients on MRI Safe wheelchair / stretcher

Product features

Feature 1

Equipped with passive sensors, safe for screening patients with pacemakers for MRI Safety

This handy detector can detect ferromagnetic materials even on an MRI aluminum stretcher.
Since MAGGUARD-HⅡ is equipped with passive sensors detecting only ferromagnetic objects so there is no risk of affecting pacemakers, implantable cardioverter defibrillators, etc., unlike ordinary metal detectors emitting electromagnetic waves. Screening can be performed with peace of mind.

Equipped with passive sensors, safe for screening patients with pacemakers for MRI Safety
Feature 2

Wider detection range by double 3D sensor units.

The ultra-sensitive magnetic sensor developed by Fujidenolo has been integrated into a three-dimensional unit, and furthermore, the two units are arranged in series to enable detection of ferromagnetic materials in a wide range. The range that can be screened in a single operation is expanded, and screening can be completed in a short time.

Wider detection range by double 3D sensor units.
Feature 3

Battery system that achieves 40 hours of operation despite its small size

Despite the small size of the unit, which enables flexible detection, it can operate for 40 hours on a 6-hour charge. The remaining of the battery can be checked on the display for peace of mind.

Battery system that achieves 40 hours of operation despite its small size

Product Specifications

MAGGUARD-HII
  • DH-MH103
  • MAGGUARD-HⅡ, Ferromagnetic Material Detector for MRI Safety, Hand-held
  • Detection sensitivity / Alarm volume
  • Indicate the distance and strength(size/volume) of ferromagnetic materials (*1)
  • 12V AC Adapter
  • 6W (when charging)
  • 40 hours (*2)
  • 6 hours
  • 20 to 35°C 30 to 85%RH No condensation
  • Height 92 x Width 316 x Depth 64 (mm)
  • Approx. 600g (excluding AC adapter)
  • *1 The distance to magnetic objects shown on the display is for reference only.
  • *2 Depends on usage conditions.

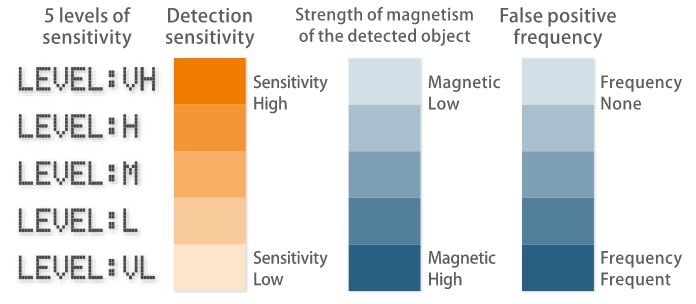

5-step sensitivity adjustment according to detection target and ambient magnetic field

Detection sensitivity can be easily adjusted at hand. By increasing the detection sensitivity, smaller changes in the magnetic field can be captured.
If the frequency of false positives is high, the detection sensitivity can be adjusted to a lower level for stable magnetic detection.

For products and technology inquiries, please contact us.
